POLYGUITARS
MULTICHANNEL - SURROUND - GUITARS
CUSTOM INQUIRIES
Each POLY-PICKUP is carefully handcrafted,
allowing for custom modifications based on your specific needs.
Unlike mass-produced items, handcrafted work offers flexibility and the ability to create something truly unique.
If you have any specific requests, feel free to reach out. I'm always open to questions and custom inquiries.
Contact: info@polyguitars.com
POLY-PICKUP - "ZEBRA"
This unique custombuild combines two Poly-Pickups Singlecoils, offering individual outputs for each string.
Dedicated 3-way toggle switches let you switch each string between Singlecoil, Humbucker, or mute.
For even more control, a 6-way volume potentiometer provides full onboard power.
POLY-PICKUP - DOMINO
A combination of the POLY-PICKUP Singlecoil and the DOMINO Pickup (mono Pickup with two coils for humbucking)
This versatile system delivers advanced tonal flexibility in a sleek, minimalist design.
A 6-way volume control allows precise adjustments, while a mini toggle switch toggles between the low E-string signal from the POLY-PICKUP and the DOMINO. With a 7-pin output that fits standard jack plates and a Split-Box for individual string signals, this pickup integrates seamlessly into various audio formats.
DOMINO
Lightweight Pickup with a custom mount for acoustic guitar. The Pickup has a dual-coil design—one coil wound clockwise, the other counterclockwise for humbucking effect. So it is simply perfect for acoustics.
POLY-PICKUP for Acoustics
Installing a pickup on a classical guitar often requires compromises to preserve its natural resonance. Many pickups are mounted on the soundboard, which can restrict vibration and affect tone.
For this project, achieving an open, dynamic sound was essential.
So a key innovation was the pickup housing, designed to mount on the side of the neck instead of the soundboard, allowing the guitar to resonate freely. Additionally, we customized the cable connection, opting for a Neutrik 7-pin connector for seamless integration with the client’s monitoring system.
Projects like this—tailoring solutions to individual needs—are what I love most!
My Peronal Powerhouse!
Two POLY-PICKUP humbuckers in one guitar.
With six toggle switches to select the neck pickup, bridge pickup, or both together—individually for each string—for a wide range of sound variations. It also features a 6-way volume and tone control.
Vintage Framus Modification

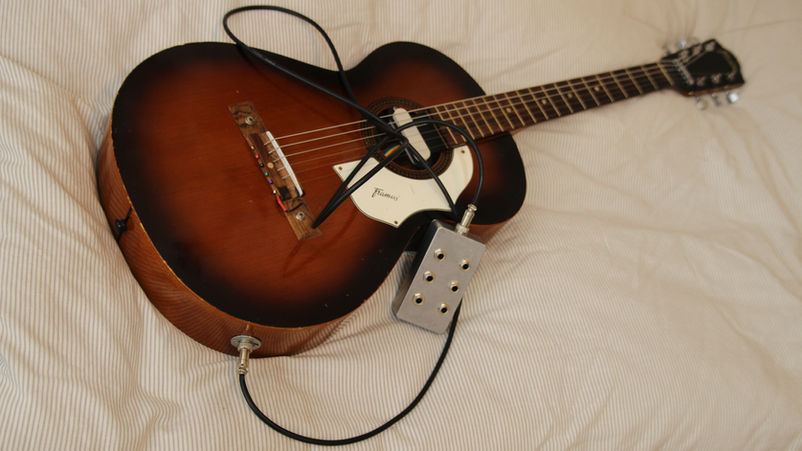

A custom Poly-Pickup Singlecoil, installed on this 1970s Framus guitar. To maintain the instrument’s natural resonance, the pickup is mounted on a frame attached under the neck rather than on the top.
With a screw-on neck, truss rod, and screwed-down bridge, the guitar offers excellent adjustability. Grounding is achieved by connecting a wire to the high E-string via the steel string holder on the neck plate. A GX-12 output socket has been added to the side, enabling connection to a Split-Box for individual string signals.
